UPTS 2.0 2M Pixel Payment Tablet Terminal TDD LTE Touch Screen Android

Ask Lasest Price
Brand Name :	Wisecard
Model Number :	WCT-S6
Certification :	PCI CE Rohs
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	10000 Set/Sets per Month
Delivery Time :	1-4 weeks

Add to Cart

Product Details
Company Profile

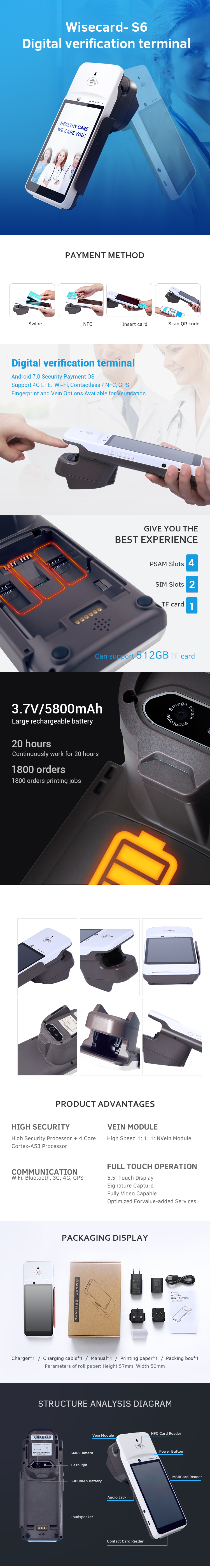

UPTS 2.0 2M Pixel Payment Tablet Terminal TDD LTE Touch Screen Android

Touch Screen Payment Tablet Terminal 4G Handheld Mobile Android POS

WCT-S6 with 5800mAh big battery which supports longer working hours and standby time. Which provides the customer a much better using experience.

Last but not least, it supports customized which provides the customer more option to define their favorite POS.

Secification:

WCT-S6FO Android POS Configuration:
Type		Product Spec
Platform	Processor	MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz)
	RAM	1GB / 2GB LPDDR3
	FLASH	8GB / 16GB EMMC, TF Card Supported
	OS	Android 7.0 Security Payment OS
	Security Processor	MAXIM MAX32555 (Deep-Cover Secure microcontroller)
Wireless	Wireless Standard	LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS
	4G	LTE-FDD: B1/B3/B8 (TBD)
	4G	TDD-LTE: B38/B39/B40/B41
	3G	UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8
		TDS-CDM: B34/B39
		EVDO: BC0
	2G	EDGE/GPRS: B3/B8
	WLAN	2.4GHz ISM 2402MHz~2482MHz
	BT 4.1 LE	2.4GHz ISM 2402MHz~2480MHz
USIM	Card Slots	4 PSAM slots, 2 SIM slots
GPS	GPS	GPS, GLONASS
LCD and Touch Panel	LCD Pixels	720*1280 IPS
	LCD	5.5 inch
	Touch Panel	G+F+F, Capacitive Color Touch, Multi Touch, signature capable, video capable
Keypad	Physical key	Power ON/OFF, Volume up, Volume down.
Keypad	Virtual Keypad	Home Key, Function key, Numeric Keys.
Audio	Speaker	1 W x 1
Audio	Microphone	Voice input
USB	USB Standard	USB Type C 2.0
USB	Other	Charge Battery, OTG support
Camera	REAR	8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video.
Camera	FRONT	2Mega Pixels, CMOS, JPEG picture, Video.
NFC	Standard	ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa support)
NFC	Spectrum	13.56MHz
IC card	Contactless Card	NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC 14443&7816
EMV card	Smart Card	EMV & PBOC Compliant
MSR	Magnetic Card	ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed 10cm/sec - 100cm/sec.
Battery	Battery type	Li-ion polymer battery
	Capacity	3.7V, 5800mAh
	Charger	5V/2A
Certification	ICC	EMV contact L1 / PBCO L1
	ICC	EMV contact L2 / PBOC L2
	NFC	EMV contactless L1 / qPBOC L1
	NFC	EMV contactless L2 / qPBOC L2
	Security	PCI 5.0
	Security	UPTS 2.0
Operating environment	Temperature	-5 to +50 °C
Operating environment	Relative humidity	10 % to 85 % RH
Storage environment	Temperature	-10 to +60 °C
Storage environment	Relative humidity	10 % to 90 % RH
Size and Weigt	Dimension and Weight	210mm85mm53mm, 480g with battery
Micro Printer	Printing method	Thermal-line dot method
	Paper	Thermal roll paper (standard) 57*40 mm
	Effective Printing area	48mm
	Speed	Maximum 70mm/sec(480 dot line/sec)
	Printing resolutions	8 dots/mm
	Character	1224dots and 2448 dots
	Number of columns	32columns/line
	Printing head life	Pulse resistance:100 million pulses/dot (under our standard conditions);
	Printing head life	Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)

Why Choose Us

1. We have our own production factory help us make sure of our delivery times and product quality. Over 10 years of experience gives us the edge!

2. Our professional technical team can quickly provide pre-sales and after-sales service. and we have full experience in construction, our engineer team is integration of theory and practice.

3. We currently provide OEM/ODM services for many customers worldwide. We have full design experience for indoor and outdoor display.

4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.

5. As part of our multiple services, we can offer 1 year warranty on all our products. Secure yourself and ask us about our extended warranty programs.
