Logistic CCD Wired Barcode Scanner Handheld IP54 1D 2D UPC 13mil
Description Of Smart Scanner

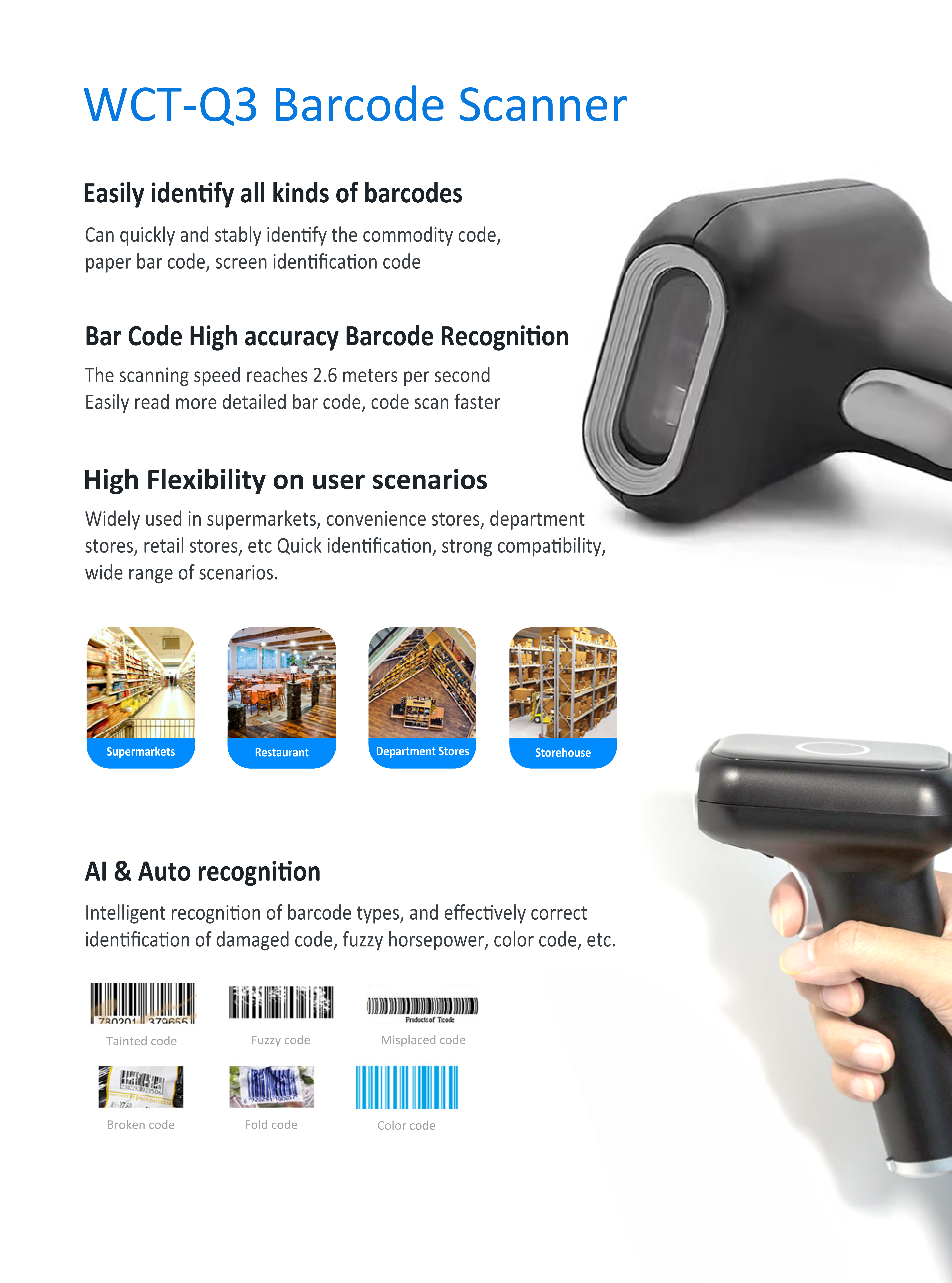

WCT-Q3 Bluetooth CCD barcode scanner that can read 1D & 2D barcodes
both on paper and screen. Decode type of WCT-Q3 are various,
include EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code
11Code 32,Code 39,Code 39 FULL ASCII,Code 93 and etc. The scanning
area of UPC-13mil is from 4 to 35cm.
Linux,Android,WindowsXP,7,8,10,MacOS are all supported.
Feature Of Smart Scanner
1. With 640*480CMOS Imaging sensor
2. Buzzer: Start prompt, decode success prompt
3. Support Turkish, Greek, Belgian, French, British-English
4. Anti-fall: Can withstand 2 meters free fall 5 times

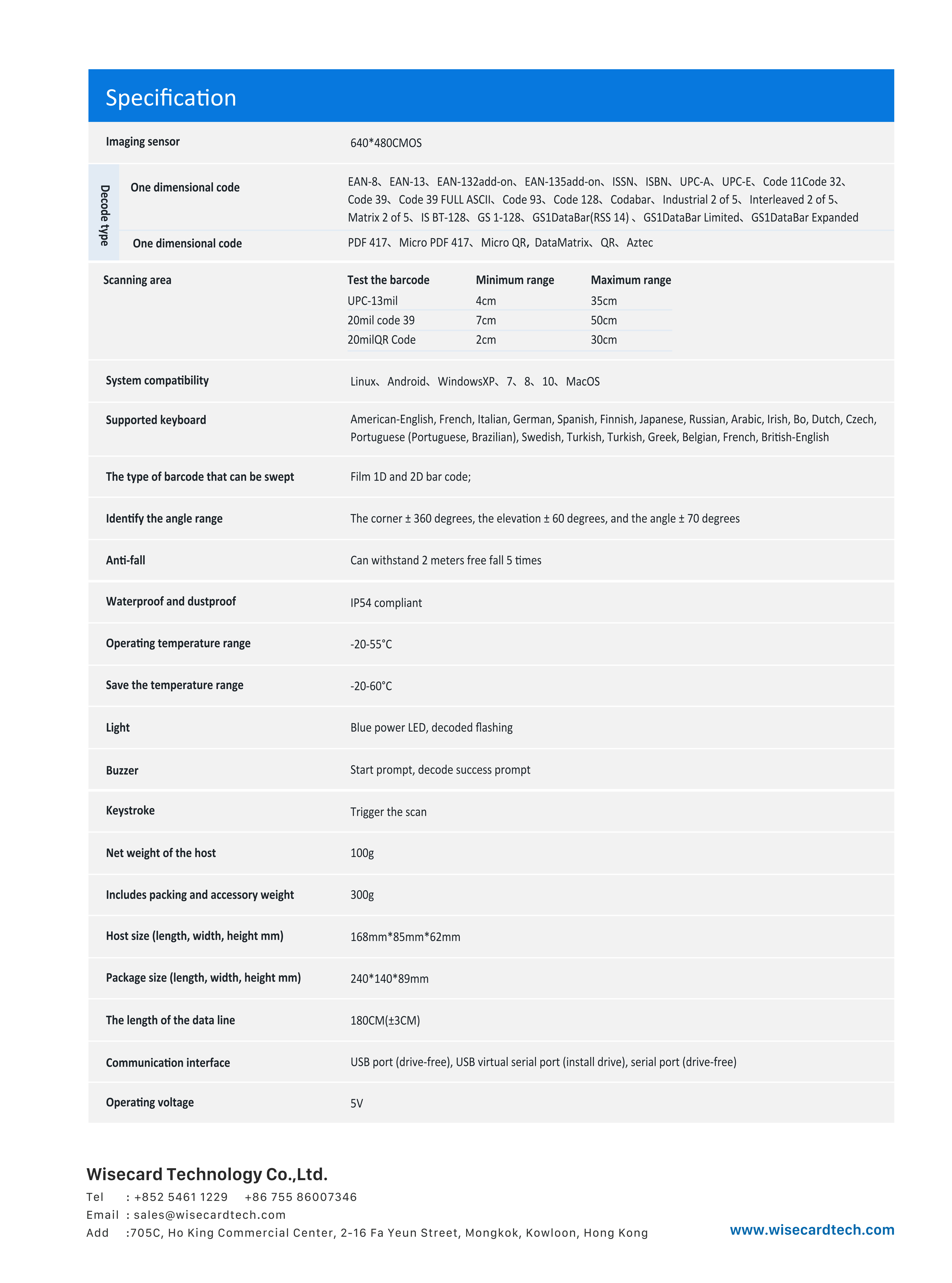

| Specification |
| Imaging sensor | 640*480CMOS |
| Decode type | One dimensional code | EAN-8,EAN-13,EAN-132add-on,EAN-135add-on,ISSN,ISBN,UPC-A,UPC-E,Code
11Code 32,Code 39,Code 39 FULL ASCII,Code 93,Code
128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,IS
BT-128,GS 1-128,GS1DataBar(RSS 14) ,GS1DataBar Limited,GS1DataBar
Expanded |
| QR code | PDF 417,Micro PDF 417,Micro QR, DataMatrix,QR,Aztec |
| Scanning area | Test the barcode | Minimum range | Maximum range |
| UPC-13mil | 4cm | 35cm | |
| 20mil code 39 | 7cm | 50cm | |
| 20milQR Code | 2cm | 30cm | |
| System compatibility | Linux,Android,WindowsXP,7,8,10,MacOS |
| Supported keyboard | American-English, French, Italian, German, Spanish, Finnish,
Japanese, Russian, Arabic, Irish, Bo, Dutch, Czech, Portuguese
(Portuguese, Brazilian), Swedish, Turkish, Turkish, Greek, Belgian,
French, British-English |
| The type of barcode that can be swept | Film 1D and 2D bar code; |
| Identify the angle range | The corner ± 360 degrees, the elevation ± 60 degrees, and the angle
± 70 degrees |
| Anti-fall | Can withstand 2 meters free fall 5 times |
| Waterproof and dustproof | IP54 compliant |
| Operating temperature range | -20-55°C |
| Save the temperature range | -20-60°C |
| Light | Blue power LED, decoded flashing |
| Buzzer | Start prompt, decode success prompt |
| Keystroke | Trigger the scan |
| Net weight of the host | 100g |
| Includes packing and accessory weight | 300g |
| Host size (length, width, height mm | 168mm*85mm*62mm |
| Package size (length, width, height mm) | 240*140*89mm |
| The length of the data line | 180CM(±3CM) |
| Communication interface | USB port (drive-free), USB virtual serial port (install drive),
serial port (drive-free) |
| Operating voltage | 5V |
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
FAQ
1. Q: What kind of brand promotion do you have?
A: Official website, Wechat, Linkedin, Twitter and Facebook. Also,
there are more than ten annual exhibitions at home and abroad.
2. Q: How do you control quality?
A: We are a company with ISO9001:2015 international QMS
certification. Our products have obtained CCC, CE, FCC, RoHS, KC,
SAA, BIS, BSMI certifications.
3.Q: What are your product command?
A:Thermal printer compatible with ESCPOS. Label printer compatible
with TSPL EPL DPL ZPL emulation.
4.Q: What’s your leading time?
A: For less than 1000pcs, 7-10 working days. For more than 1000pcs,
10-15 working days.
5.Q: What's your delivery terms ?
A: Delivery terms can be EX-WORKS, FOB or C&F.
6.Q: If the goods are damaged, what can we do ?
A: 1% FOC parts dispatched with shipment. When it is damaged, you
can replace it directly.
7.Q: What is printer defective rate?
A: Less than 0.3%
8.Q: What is the Warranty for your printers?
A: We support 12 months for all of our products.
9.Q: What’s your main product line?
A: Specialized in Receipt printers, Label Printers, Mobile
Printers, Panel printers, Kiosk printer, Dot Matrix Printer ,
Bluetooth printers.
