    152KB Memory EMV Chip 72MHZ Main Frequency 32 Bit CPU Debit Card Chip

    Ask Lasest Price
    Brand Name : Wisecard Technology
    Model Number : CIU9872B
    Certification : ISO14443,7816
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100,000 pcs per week
    Delivery Time : 7 week days
    • Product Details
    • Company Profile

    152KB Memory EMV Chip 72MHZ Main Frequency 32 Bit CPU Debit Card Chip

    WCT Duo-Surface 32-Bit EMV Chip CIU9872B_01 Plus Chip

    Product Description:

    EMV is a payment method based upon a technical standard for smart payment cards and for payment terminals and automated teller machines which can accept them. EMV originally stood for "Europay, Mastercard, and Visa", the three companies that created the standard. CIU9872B_01 Plus chip uses 32-bit secure CPU core and EEPROM memory, supports hardware cryptographic algorithms (DES/AES/ECC/RSA/SHA-n, SM1/SM2/SM3/SM4), supports multiple interfaces: 7816/14443/ I2C / GPIO, for financial applications.

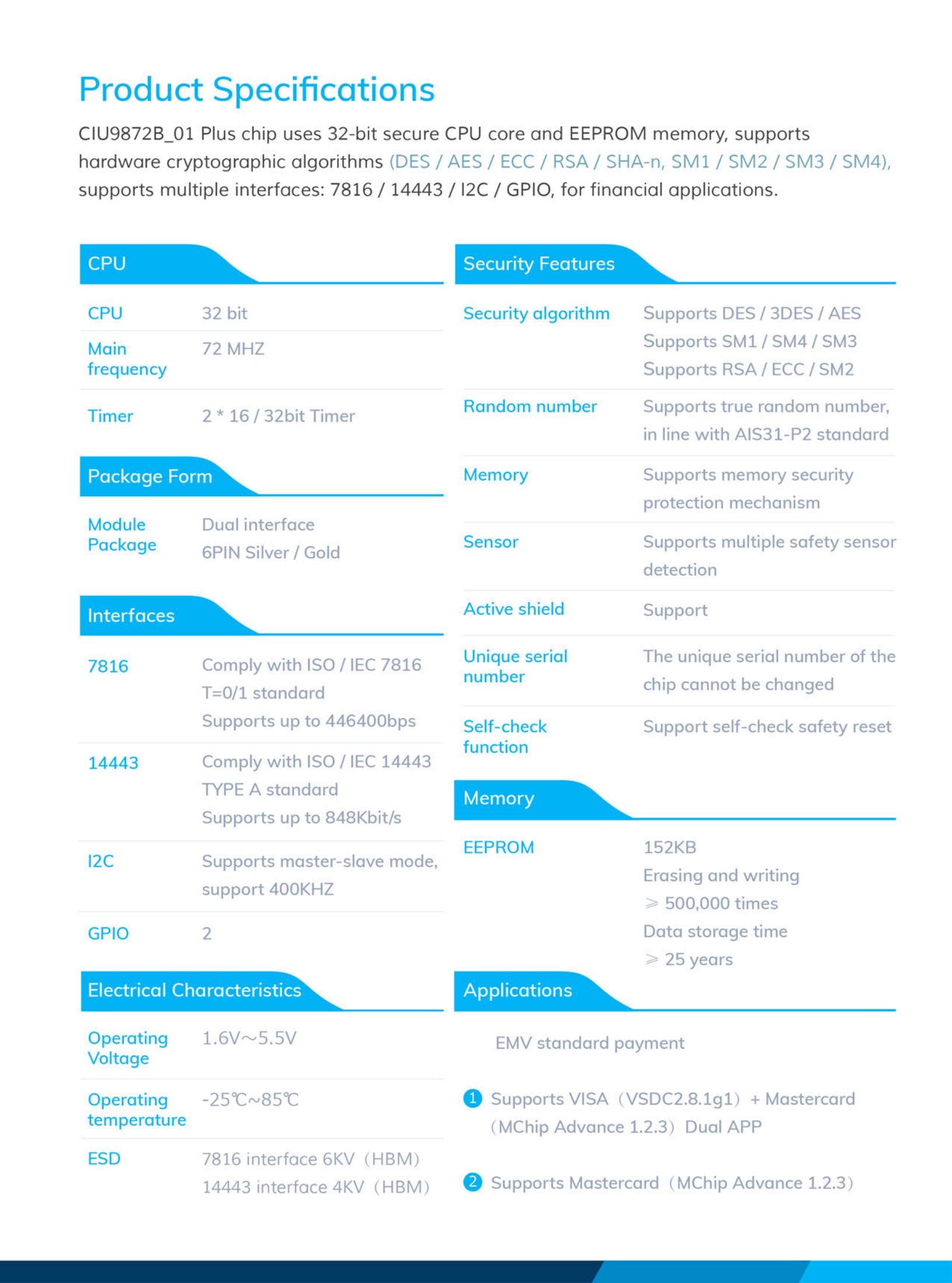

    Specification:

    CPUSecurity Features
    CPU32 bitSecurity algorithmsupports DES/3DES/AES
    Main frequency72MHZsupports SM1/SM4/SM3
    Timer2 * 16/32bit Timersupports RSA/ECC/SM2
      Random
    number
    Supports true random number, in line
    with AIS31-P2 standard
    MemoryMemorySupports memory security protection
    mechanism
    EEPROM152KBSensorSupports multiple safety sensor
    detection
    Erasing and writing
    ≥ 500,000 times
    Active shieldsupport
    Data storage time
    ≥ 25 years
    Unique serial
    number
    The unique serial number of the chip
    cannot be changed
      Self-check
    function
    Support self-check safety reset

    Interfaces Package Form
    7816Comply with ISO/IEC 7816
    T=0/1 standard
    Module
    Package
    Dual interface
    Supports up to 446400bps6PIN Silver/Gold
    14443Comply with ISO/IEC 14443
    TYPE A standard
    Applications
    Supports up to 848Kbit/sEMV standard payment
    I2CSupports master-slave mode,
    support 400KHZ
    1)Supports VISA(VSDC2.8.1g1)+ Mastercard
    (MChip Advance 1.2.3)Dual APP
    GPIO2
    Electrical Characteristics
    Operating
    Voltage
    1.6V~5.5V2)Supports Mastercard(MChip Advance 1.2.3)
    Operating
    temperature
    -25℃~85℃
    ESD7816interface 6KV(HBM)
    14443interface 4KV(HBM)

    Service:

    1. QC: Every single card will be carefully checked by machine or manual work before dispatched.

    2. Accept personalized customization.

    3. Strict quantity control on processing.

    4. On time delivery.

    5. Quality assurance: 1year warranty after delivery.

    6. Quick response: Your inquiry will be replied in 24 hours.


    FAQ:

    Q:How long is the warranty time for your products?

    A: Our officially promised warranty time is one whole year after delivery at best.


    Q: Do you have your own enclosure factory?

    A:Yes we do have our own enclosure factory, and we have the best structural Engineer, we hope to provide you with best screen and shape, so OEM is also welcome.


    Q:Do you give any discount ?

    A: We are Manufacturer, so we are able to give you the best price and best service at the same time.


    Q: Is your company a real manufacturer?

    A: Our company is the professional manufacturer in Shenzhen, you are the mostly welcomed to visit our factory anytime.
