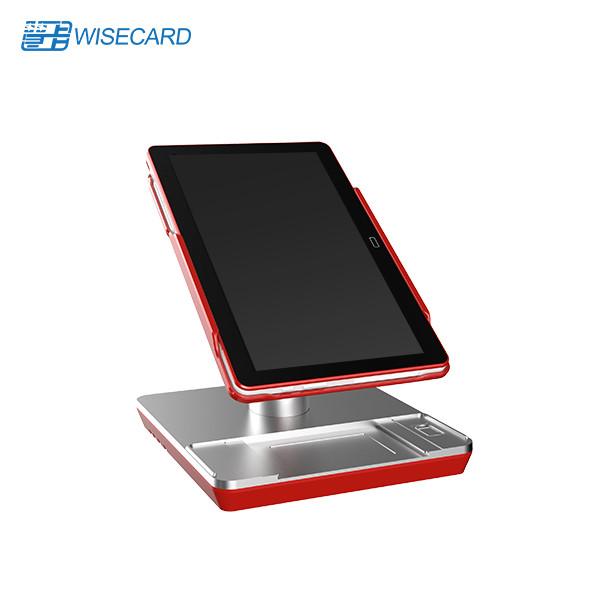

Cash Register TAB POS Terminal 11.6 Inch Touch Screen Tablet
Android POS Terminal
HD Screen
High-Definition TFT-LCD Screen, Resolution 1920*1080 15.6 Inch Main
Screen
Communication
Support multiple network connection services to meet the networking
needs of different stores: Ethernet, WiFi, Bluetooth
Android 7.1 system
Deeply customized Android 7.1 operating system, easy to use, simple
and convenient, provide secondary development package, easy to
operate, easy to develop
Ouad-Core CPU
Ouad-cores main frequency 1.5GHz high-performance processor,
RAM2GB+ROM8GB
Personalise
Flexible customization to support secondary development
Functional modules required for free secondary development kit
desig OEM/ODM
Application
Widely used large supermarkets, supermarket chains,
specialtystores, department stores, hardware stores,
libraries,Westerfood, tea shops, coffee shops, fast food
restaurants, small andmedium-sized restaurants, etc.
| WCT-Tab Product Specifications |
| Item | Specification |
| Operation | Security OS, Android 5.1 |
| CPU | Quad-core, 1.2 GHz |
| Memory | 2GB DDR3, 16GB Flash Optional: 3+32GB |
| Display | 11.6 inch, Resolution: 1366*768 |
| Screen | High Sensitivity Capacitive Touch Screen |
| Camera | Front Camera: 5 Mega Pixel Auto Focus
Rear Camera: 5 Mega Pixel Auto Focus
Optional: Rear Camera: 8 Mega Pixel Auto Focus
Support High-speed Scanning Algorithm |
| Communication | 2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8
4G: FDD Band 1/3/7; TDD Band: 38/39/40/41 |
| WIFI | Support 2.4G/5G, a/b/g/n |
| Bluetooth | BT 4.0+BLE |
| GPS | Support: GPS/A-GPS, GLONASS, BEIDOU |
| NFC | ISO/IEC 14443 Type A&B, Felica,ISO/IEC 14443&7816 |
| IC Card Reader | ISO/IEC 7816, Conform toEMV L1/L2 |
| Magnetic Card Reader | ISO/IEC 7816, Track 1/2/3, Bi-directional |
| PSAM | 1 PSAM Slots, ISO/IEC 7816 |
| Indicator | 4 Independent POS Indicators |
| Buzzer | Support |
| Memory Extension | Micro SD/TF, 64GB |
| USB Port | Micro USB, OTG Supported |
| SIM Card Slot | 1 SIM Card Mirco SIM Card |
| Audio | 1 Speaker, 1 Mircophone |
| Auxiliary Lamp | Support Red Light Position |
| Keys | Power Key, Physical Key,Volume Key; Touch Key: HOME Key |
| Battery & Power | 6900mAh, Input: 100-240V, 50/60 Hz 0.35A, Output: 9V/2000 mA |
| Weight | 880g (pad), 2297g (including bracket) |
| Optional Accessories | Cash Drawer, Barcode Scanner, Mobile Printer
USB Commercial Keyboard, Electronic Scale |
| Certifications | PCI PTS, EMV L1&L2, EMV Contactless L1
Visa Paywave, MasterCard Paypass, RoHS |
Applicable Industries:
★ Supermarket
★ Fresh Market
★ Restaurant Chain
★ Coffeehouse Chain
★ Franchise Store
★ Convenience Store
Terminal Data Management:
★ Manufactuer Name & Code
★ Serial Number
★ Installation Infomation
★ Firmware Type
★ Firmware Version
★ CID
★ CPUID
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that
has been providing innovative payment and secure solutions to
financial institutions, government entities and telco operators
worldwide.
Wisecard have been providing EMV smart card, EMV biometric card,
EMV perso software, card issuance, EMV embossers, Smart POS
machine, Android POS, POS terminals, smart banking, smart teller
machine, kiosk, vending machine, biometric POS, Hardware Secure
Module, mobile payment platform, private label card solution,
prepaid card solution, card management system to partners in more
than 60 countries worldwide. Wisecard’s product suite empower large
global financial institutions and government sectors as well as
small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure
standard, and the solutions have been fully tested and certified by
international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS,
VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and
etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China
UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All
trademarks referenced here are the property of the respective
owners.
