Android Smart Cash Register Tablet POS Machine with Touch Screen
and Fingerprint Reader
Introduction:

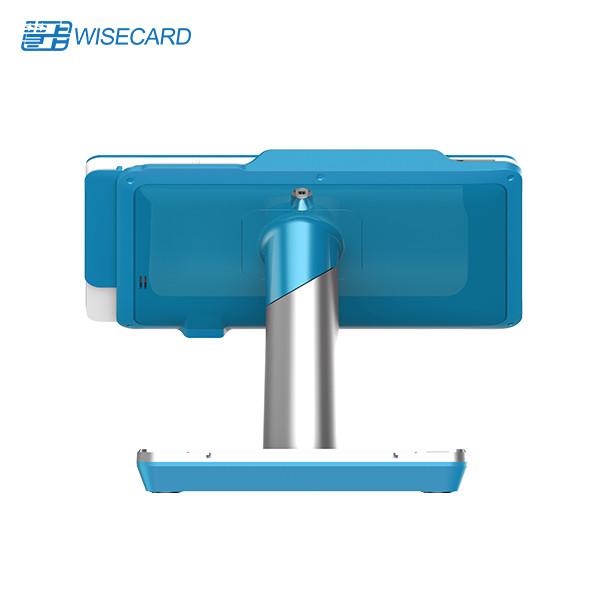

WCT-Tab is a new design Android POS tablet machine for payment. It
is a 11.6” all in one touch screen POS PC, 4:3 ratio, 10-point
capacitive touch glass with low power consumption motherboard.
Empower your business with three powerful CPU options: J1900, i3 or
i5. It offers a variety of add-on peripharial options including
external barcode scanner, bluetooth printer, cash box, signature
pen, input USB commercial board.
| WCT-Tab Product Specifications |
| Item | Specification |
| Operation | Security OS, Android 5.1 |
| CPU | Quad-core, 1.2 GHz |
| Memory | 2GB DDR3, 16GB Flash Optional: 3+32GB |
| Display | 11.6 inch, Resolution: 1366*768 |
| Screen | High Sensitivity Capacitive Touch Screen |
| Camera | Front Camera: 5 Mega Pixel Auto Focus
Rear Camera: 5 Mega Pixel Auto Focus
Optional: Rear Camera: 8 Mega Pixel Auto Focus
Support High-speed Scanning Algorithm |
| Communication | 2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8
4G: FDD Band 1/3/7; TDD Band: 38/39/40/41 |
| WIFI | Support 2.4G/5G, a/b/g/n |
| Bluetooth | BT 4.0+BLE |
| GPS | Support: GPS/A-GPS, GLONASS, BEIDOU |
| NFC | ISO/IEC 14443 Type A&B, Felica,ISO/IEC 14443&7816 |
| IC Card Reader | ISO/IEC 7816, Conform toEMV L1/L2 |
| Magnetic Card Reader | ISO/IEC 7816, Track 1/2/3, Bi-directional |
| PSAM | 1 PSAM Slots, ISO/IEC 7816 |
| Indicator | 4 Independent POS Indicators |
| Buzzer | Support |
| Memory Extension | Micro SD/TF, 64GB |
| USB Port | Micro USB, OTG Supported |
| SIM Card Slot | 1 SIM Card Mirco SIM Card |
| Audio | 1 Speaker, 1 Mircophone |
| Auxiliary Lamp | Support Red Light Position |
| Keys | Power Key, Physical Key,Volume Key; Touch Key: HOME Key |
| Battery & Power | 6900mAh, Input: 100-240V, 50/60 Hz 0.35A, Output: 9V/2000 mA |
| Weight | 880g (pad), 2297g (including bracket) |
| Optional Accessories | Cash Drawer, Barcode Scanner, Mobile Printer
USB Commercial Keyboard, Electronic Scale |
| Certifications | PCI PTS, EMV L1&L2, EMV Contactless L1
Visa Paywave, MasterCard Paypass, RoHS |
Applicable Industries:
★ Supermarket
★ Fresh Market
★ Restaurant Chain
★ Coffeehouse Chain
★ Franchise Store
★ Convenience Store
Terminal Data Management:
★ Manufactuer Name & Code
★ Serial Number
★ Installation Infomation
★ Firmware Type
★ Firmware Version
★ CID
★ CPUID
Q&A
What is your company address?
our company's address is: 1-602, Shenzhen Software Park, Hi-Tech
Middle 2nd RD, Nanshan, Shenzhen, Guangdong, 518057, China.
How many people are there in your team?
There are 40 people in our team, mainly R&D and sales staff, 6
technical giant people are the core engine of our tech and
products.
Do you supply samples?
Yes, sample can be supplied and the quantity of samples depends on
the type of product.
How do you guarantee the quality of your products?
The production process of the products we sell has been strictly
assessed by ISO quality system certificatio, and our products have
obtained CE, ROHS and FCC certification.
How long is your lead time?
The products you buy will be delivered within 2-3 days if the
quantity required is lower than our stock, if the quantity is more
than stock we have then lead time is 2-6 weeks depending on the
quantity.
Do you offer customized services?
Yes, we provide LOGO, outer packing, product shape and graphic
design, hardware and software customized services.
