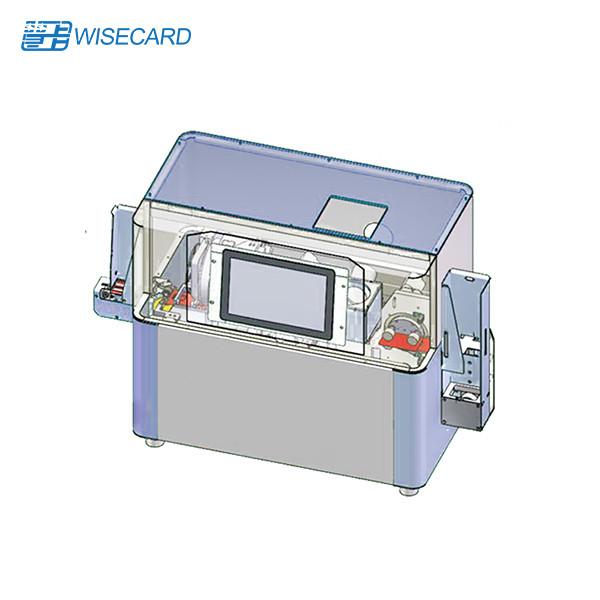

High performance, Secure EMV Card Issuance Card personalization
Machine for banking cards
For Customer
More Convenient
with various module combination, save customers effort for bank
account activities, enable banks to issue card massively with a
very competitive cost.
Time Saving
with issuance of debit andcredit card function, able to issue front
indent or front embossing and rear indent cards.
For Bank
Less Cost
issues credit cards at data center in a secure mannter and it is
expected to issue up to 500 cards per hour.
More Secure
card data and issuance in a secure manner is always the top
priority, can be sitted in the data center to assist the bank to
issue card at center and perform central issuance.
| Specification Of Retransfer Card Printer |
| Print Method | Dye-sublimation retransfer |
| Print Mode | Dual side (standard configuration) |
| Print Resolution | 600 x 600 dpi |
| Print Speed | 170 cph (YMC single side, batch mode) |
| Printhead: | Lifetime warranty (using EDIsecure® materials) (other conditions
apply) |
| Card Types | PVC, PET-G, PET, ABS, PC |
| Card Thickness: | 0.25 mm - 1.0 mm (10 mil - 40 mil) |
| Input Capacity | 250 cards (0.76mm / 30mil) |
| Output Capacity | 250 cards (0.76mm / 30mil) |
| Communications Interface: | USB (1.0, 1.1, 2.0, 3.0). USB cable supplied. |
| Ethernet 10BaseT, 100BaseT |
| Serial RS-232C |
| OS Support | Windows 10 (32/64 bits), Windows 8 (32/64 bits), Windows 7 (32/64
bits) |
| Windows Vista (32 bits), Windows Server 2008 R2 |
| Printer Net Weight | 20 kg.(44.09 lbs) - main body, not including parts |
| Printer Dimension | 436 x 340 x 297 mm. (17.2” x 13.4” x 11.7”) |
| Power Supply | AC90/125V, 220-240V, 50-60 Hz |
| Operating Environment | Temperature: 10ºC - 30ºC |
| Humidity: 20% - 80% (non-condensing) |
| Certificate | FCC, CE, UL, GOST-R, and CCC approved |
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that
has been providing innovative payment and secure solutions to
financial institutions, government entities and telco operators
worldwide.
Wisecard have been providing EMV smart card, EMV biometric card,
EMV perso software, card issuance, EMV embossers, Smart POS
machine, Android POS, POS terminals, smart banking, smart teller
machine, kiosk, vending machine, biometric POS, Hardware Secure
Module, mobile payment platform, private label card solution,
prepaid card solution, card management system to partners in more
than 60 countries worldwide. Wisecard’s product suite empower large
global financial institutions and government sectors as well as
small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure
standard, and the solutions have been fully tested and certified by
international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS,
VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and
etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China
UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All
trademarks referenced here are the property of the respective
owners.
