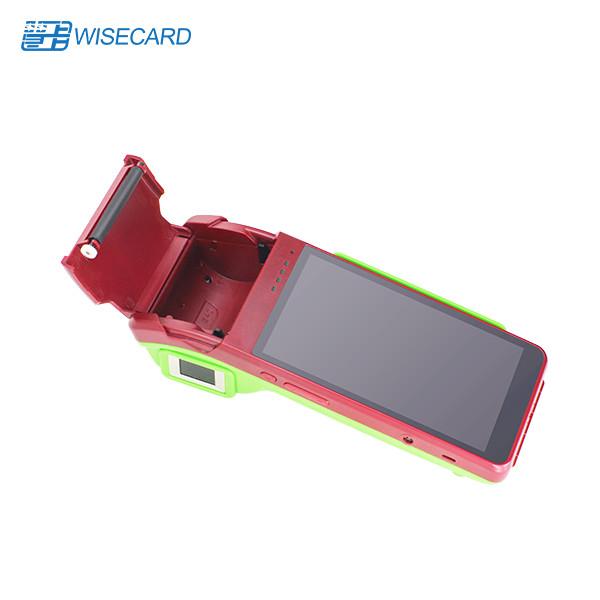

WCT-S8 Android smart POS with printer and fingerprint collectin
module(optional) , android 7 operating system, 5.5 inch screen
touch, super long standby battery capacity is 7.4V 5800 mAh,
thermal paper printer, 5 Mega-pixel camera, 2G / 3G / 4G /wifi,
bluetooth communication, this fine workmanship and top quality
machine is the best choice on the market.
Print receipt every where! With high configuration,S8 can be used
widely in Lottery,Express,Mobile-Topup,Taxfree shop,Traffic ticket.
| WCT-S8 Android POS Configuration |
| Type | Product Spec |
| Platform | Processor | MTK MT8735 ( 4-Core ARM Cortex-A53,1.3GHz ) |
| RAM | 1GB / 2GB LPDDR3 |
| FLASH | 8GB / 16GB EMMC |
| OS | Android 7.0 Security Payment OS |
| Security Processor | MAXIM MAX32555 (DeepCover Secure microcontroller) |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD : B1/B3/B8 (TBD) |
| TDD-LTE : B38/B39/B40/B41 |
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+ : B1/B8 |
| TDS-CDMA : B34/B39 |
| EVDO : BC0 |
| 2G | EDGE/GPRS : B3/B8 |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch |
| Touch Panel | G+F+F, Capacitive Color Touch,Multi Touch, signature capable, video
capable |
| Keypad | Physical key | Power ON/OFF, Volumn up, Volumn down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. |
| NFC | Standard | ISO14443 type A/B ( ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa
support ) |
| Spectrum | 13.56MHz |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC
14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed
10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh |
| Charger | 5V/2A |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 |
| NFC | EMV contactless L1 / qPBOC L1 |
| EMV contactless L2 / qPBOC L2 |
| Security | PCI 5.0 |
| UPTS 2.0 |
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH |
| Size and Weigt | Dimension and Weight | 203mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm |
| Effective Printing area | 48mm |
| Speed | Maximum 70mm/sec(480 dot line/sec) |
| Printing resolutions | 8 dots/mm |
| Character | 12*24dots and 24*48 dots |
| Number of columns | 32columns/line |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard
conditions); |
| Abrasion resistance: paper traveling distance 50km (print ratio:25%
or less) |
Packaging Details:
Portable Android POS terminal With Printer 1D/2D Barcode Scanner
Packing list:
POS Thermal with Printer *1
Cable *1
Adapter *1
Driver *1
Manual *1
FAQ:
Q1: What is the payment way?
A: We accept T/T.
Q2: What is the shipment way?
A: There are DHL, TNT, UPS, FedEx, and besides, we can ship the
goods by your shipping account or other express agents you
provided.
Q3: How long can I get the product?
A: Generally, the shipping time is 3~7 working days. Different area
has different time.
Q4: How about the quality of the product?
A: There are CE/FCC/IEC/ROHS/ISO9001-2008 certificates. Our
products have good quality and get lots of good feedbacks from our
customers.
Q5: How about the after-sales service?
A: Our products are warranted against manufacturing defects in
materials for a period of 1 year and workmanship for a period of 2
years from data of manufacture, under normal use.
