Multi-function Smart Teller Machine Self-service STM Equipment for
Bank
Instant Card Printer & Embosser
Compatible with all the features of unselectable card dispenser
Instant lost card replacement
Printing flat & embossed card within 60S
(debit card credit card, social security card, health card,
business card, joint name card... )
Powerful capacity: 6 locked built in replaceable card cassette(600
cards)and2reject/old card collection box(150 cards)
Easy deployment: lobby, small floor space(66*77*120cm)

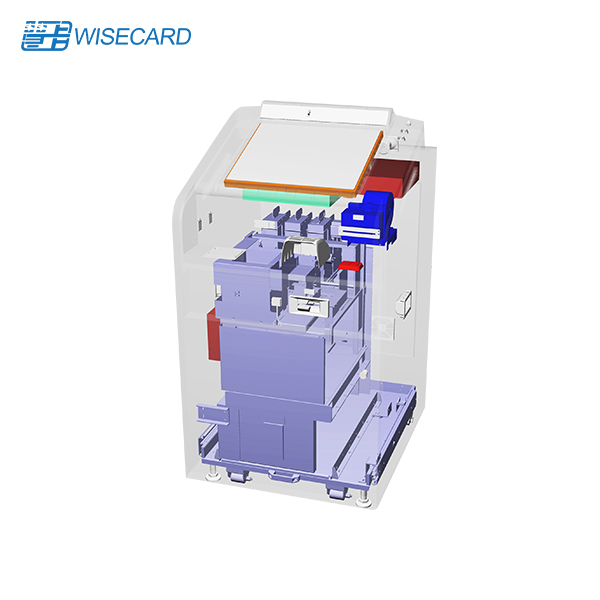

WCT-260T is the newest smart self service bank kiosk designed to improve
branch efficiency and enhance user experience. Combined with
Wisecard smart banking system and machine control platform it
builds up a turn-key smart branch solution for commercial banks.
Kiosk with Instant Card Issuance, A Lobby Instant Card Issuance
System
On-demand brilliant and highly secure card issuance
★ Minimizes Card Scheme operating expenses, reduce per-card costs,
reduces dormant, or inactive cards
★ Reduced Security concerns and shipping costs due to shipment of
blank cards to Bank branches
★ Instant Issuance of personalized cards, even with custom picture
★ Instant and painless replacement of expired or lost cards
★ Convenient front-facing single card input/output slot for easy
operation
★ Rich Selection of Personalization Processes
Embossing
Indent Printing Front & Back sides
Magnetic stripe encoding
Chip Encoding (contact & contactless)
Optional direct-to-card color printing
★ Easy Deployment Form Factor for Lobby Environment: Small Foot
Print: W:660 x D:770 x H:1200mm³ equivalent to a Lobby ATM foot
print.
FAQ
Q:Are you a factory or simply a trading company?
A: We are a true OEM/ODM factory. Please read our company profile,
for more information on this issue.
Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of
the order. Also, please be aware, some factories may not advise
you, but after the production delays, you might be facing a few
more days delays before catching your sea or your on-board flight
departures. ( might be anywhere from 3 to 7 working days). Again,
depending in which season you are shipping.
Q:Can we print our Logo on the products? What is MOQ?
A:We can print your own Logo on it as you like. There is no MOQ for
stock models. For customized models will depending on your
requests. Different methods are used for logos, please ask your Key
Account MGR for more information on this issue, we will surely find
the right solution for you!
Q: What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T.
| WCT-260T Smart Teller Machie Specification |
| Module | Technical Specifications |
| Cabinet & Accessories | Hard, thick and non-deforming materials |
| Surface treatment process: rust-proof, antiseptic, anti-friction |
| Neat internal wiring, using drag track and front door for easy
maintenance |
| Independent ventilation system in line with bank requirements |
| SIU | Sensors and Indicators Unit |
| Industrial PC | CPU: Core i series or equivalent technical indicators |
| Hard drive: 500G |
| Memory: 4G |
| Display | Display: 19'' 4:3 TFT LED |
| Resolution: 1024*768 (inclusive) or more |
| Anti-glare (film): left and right viewing angle < = 30 degree |
| Touch Screen | Touch Screen: 19''4:3 |
| Resolution: 4096*4096 |
| Special requirements: anti-dust/ riot/ scratch |
| Receipt Printer | Support full graphic printing |
| Width: 80mm |
| Chinese font: Arial or traditional; English font |
| Support GB 18030 character set and GBK character set |
| Black spot recognition |
| Continuous paper printing, automatic cutting, to provide semi-cut/
full cut function |
| EPP | PCI 4.0 certified |
| 16 buttons |
Flat Card Printer
(with card reader) | Support duplex printing |
| PASS BCTC test and certification |
| Support PBOC, EMV standards |
| Six card hoppers with independent lock |
| Print: picture, photo, name, validity, CVV and etc |
| Six card-dispensing box, total capacity are: 600 pcs flat card |
| Double card-collecting box: total capacity: 150 pcs flat card |
| Embosser | Support Embossing and rear indent, Tipping |
| Pass BCTC test and certification |
| Support PBOC, EMV standars |
| Camera | Support concealment |
| Support 720P |
| ID Card Reader | Electrically load in card |
| Meet the requirements of the Ministry of Public Security |
| Compulsory return ID card |
| Fingerprint Scanner | Capacitive |
| Detection of dermis |
| Contactless Card Reader | Secure module avaliable |
| Follow ISO/ IEC 14443 standard |
| Support EMV standard requirements |
| Power fail safeguard function for the data stored in the card
reader |
| Human Sensor | Can sense that customer pis standing in front |
| OS | WIN7, WIN10 or other OS |
| Digital Pen | Handwriting fidelity; Integrated handwritten singnature
board+electromagnetic induction pen |
| Bar Code Scanner | Support both one dimension and two-dimension code (QR code) |
