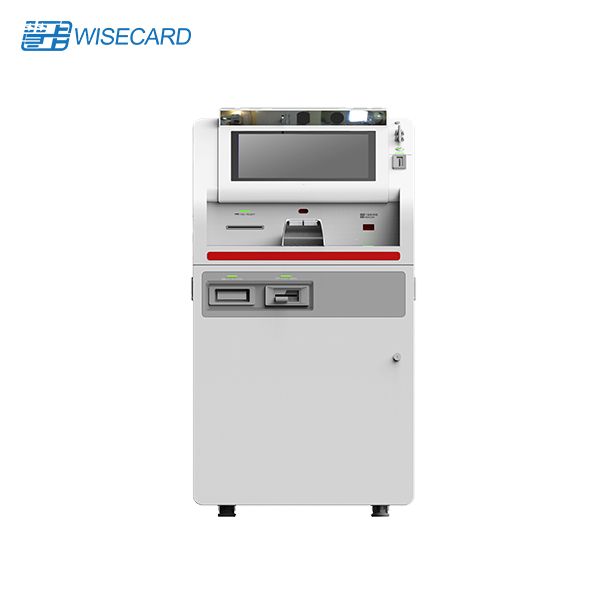

Versatile Smart Teller Machine Bank STM Touch Screen Self-service
Kiosk
Kiosk with Instant Card Issuance, A Lobby Instant Card Issuance
System
On-demand brilliant and highly secure card issuance
★ Minimizes Card Scheme operating expenses, reduce per-card costs,
reduces dormant, or inactive cards
★ Reduced Security concerns and shipping costs due to shipment of
blank cards to Bank branches
★ Instant Issuance of personalized cards, even with custom picture
★ Instant and painless replacement of expired or lost cards
★ Convenient front-facing single card input/output slot for easy
operation
★ Rich Selection of Personalization Processes
★ Easy Deployment Form Factor for Lobby Environment: Small Foot
Print: W:660 x D:770 x H:1200mm³ equivalent to a Lobby ATM foot
print.
Financial institutions, service bureaus, retailers, governments and
other card issuers can now issue in a highly secure manner
personalized embossed cards on demand, either individually, or in
low-volume batches with our instant issuance system. This lobby
system empowers Banks to enhance their customer experience, or
implement new forms of customer service provision.
Function module
PAYMENT
Money Transfer Account Inquiry Credit Card Repay
STATEMENT
Credit Report Bank Statement Transaction Report
EASY LIFE
House Funding Inquiry Water Bills
Phone Bills
FINANCING
Foreign Exchange Funding
Financing Insurance Products
ACCOUNT MANAGEMENT
Account Opening Account Activation Card issuance Password Change
Personal Info Update
| WCT-260T Smart Teller Machie Specification |
| Module | Technical Specifications |
| Cabinet & Accessories | Hard, thick and non-deforming materials |
| Surface treatment process: rust-proof, antiseptic, anti-friction |
| Neat internal wiring, using drag track and front door for easy
maintenance |
| Independent ventilation system in line with bank requirements |
| SIU | Sensors and Indicators Unit |
| Industrial PC | CPU: Core i series or equivalent technical indicators |
| Hard drive: 500G |
| Memory: 4G |
| Display | Display: 19'' 4:3 TFT LED |
| Resolution: 1024*768 (inclusive) or more |
| Anti-glare (film): left and right viewing angle < = 30 degree |
| Touch Screen | Touch Screen: 19''4:3 |
| Resolution: 4096*4096 |
| Special requirements: anti-dust/ riot/ scratch |
| Receipt Printer | Support full graphic printing |
| Width: 80mm |
| Chinese font: Arial or traditional; English font |
| Support GB 18030 character set and GBK character set |
| Black spot recognition |
| Continuous paper printing, automatic cutting, to provide semi-cut/
full cut function |
| EPP | PCI 4.0 certified |
| 16 buttons |
Flat Card Printer
(with card reader) | Support duplex printing |
| PASS BCTC test and certification |
| Support PBOC, EMV standards |
| Six card hoppers with independent lock |
| Print: picture, photo, name, validity, CVV and etc |
| Six card-dispensing box, total capacity are: 600 pcs flat card |
| Double card-collecting box: total capacity: 150 pcs flat card |
| Embosser | Support Embossing and rear indent, Tipping |
| Pass BCTC test and certification |
| Support PBOC, EMV standars |
| Camera | Support concealment |
| Support 720P |
| ID Card Reader | Electrically load in card |
| Meet the requirements of the Ministry of Public Security |
| Compulsory return ID card |
| Fingerprint Scanner | Capacitive |
| Detection of dermis |
| Contactless Card Reader | Secure module avaliable |
| Follow ISO/ IEC 14443 standard |
| Support EMV standard requirements |
| Power fail safeguard function for the data stored in the card
reader |
| Human Sensor | Can sense that customer pis standing in front |
| OS | WIN7, WIN10 or other OS |
| Digital Pen | Handwriting fidelity; Integrated handwritten singnature
board+electromagnetic induction pen |
| Bar Code Scanner | Support both one dimension and two-dimension code (QR code) |
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that
has been providing innovative payment and secure solutions to
financial institutions, government entities and telco operators
worldwide.
Wisecard have been providing EMV smart card, EMV biometric card,
EMV perso software, card issuance, EMV embossers, Smart POS
machine, Android POS, POS terminals, smart banking, smart teller
machine, kiosk, vending machine, biometric POS, Hardware Secure
Module, mobile payment platform, private label card solution,
prepaid card solution, card management system to partners in more
than 60 countries worldwide. Wisecard’s product suite empower large
global financial institutions and government sectors as well as
small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure
standard, and the solutions have been fully tested and certified by
international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS,
VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and
etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China
UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All
trademarks referenced here are the property of the respective
owners.
