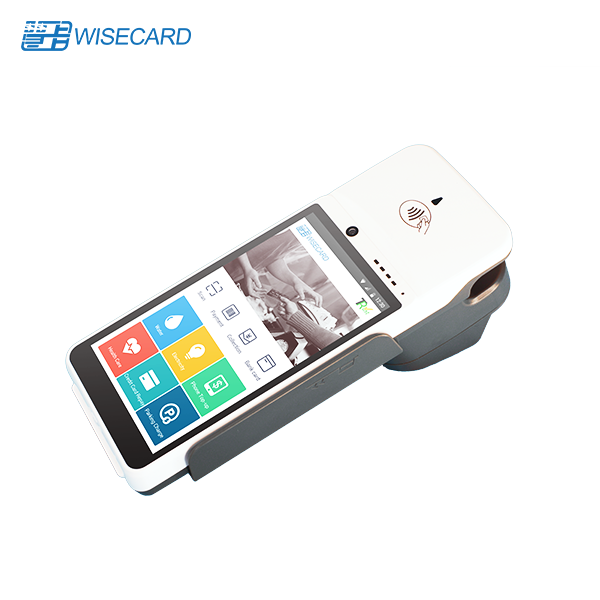

WCT-S6 POS EMV PCI Certified 4g offline pos terminal android 7.0
pos
WCT-S6 is a four core Android OS smart POS terminal with
differentiating security method of latest finger vein module which
makes it bring you highest security level.
| WCT-S6FO Android POS Configuration: |
| Type | Product Spec |
| Platform | Processor | MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz) |
| RAM | 1GB / 2GB LPDDR3 |
| FLASH | 8GB / 16GB EMMC, TF Card Supported |
| OS | Android 7.0 Security Payment OS |
| Security Processor | MAXIM MAX32555 (Deep-Cover Secure microcontroller) |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD: B1/B3/B8 (TBD) |
| TDD-LTE: B38/B39/B40/B41 |
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8 |
| TDS-CDM: B34/B39 |
| EVDO: BC0 |
| 2G | EDGE/GPRS: B3/B8 |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch |
| Touch Panel | G+F+F, Capacitive Color Touch, Multi Touch, signature capable,
video capable |
| Keypad | Physical key | Power ON/OFF, Volume up, Volume down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. |
| NFC | Standard | ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa
support) |
| Spectrum | 13.56MHz |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC
14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed
10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh |
| Charger | 5V/2A |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 |
| NFC | EMV contactless L1 / qPBOC L1 |
| EMV contactless L2 / qPBOC L2 |
| Security | PCI 5.0 |
| UPTS 2.0 |
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH |
| Size and Weigt | Dimension and Weight | 210mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm |
| Effective Printing area | 48mm |
| Speed | Maximum 70mm/sec(480 dot line/sec) |
| Printing resolutions | 8 dots/mm |
| Character | 12*24dots and 24*48 dots |
| Number of columns | 32columns/line |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard
conditions); |
Abrasion resistance: paper traveling distance 50km (print ratio:25%
or less) |
Quick Detail:
- More than 9 years manufacturing experiences and products applied
/placed more than 180 countries
- Upgradable functions available
- Flexible Modification to fit customers requirements
- In-door or out-door optional
FAQ
Q:Do you offer warranty for the device?
A:Yes,we offer one year warranty& lifelong technical support
Q:What is your MOQ
A: :MOQ is 2pcs
Q: What is your payment term?
A: :Paypal,T/T(Bank Transfer),Western Union,Cash, Visa and Credit
Card via alibaba is preferred
Q: How to get software and SDK?
A: Software and SDK is free. Will share download link via dropbox
after you place order.
