Smart 4G All In One Pos Handheld Mobile Touch Screen Android
POS+System With 58mm Printer 2D Barcode Scanner

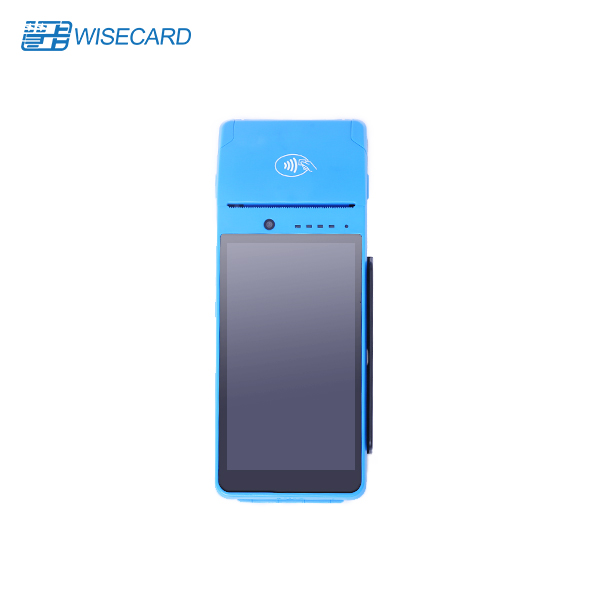

A Full Touch Screen Smart Mobile POS Terminal
WCT-T90 Handheld Mobile NFC Smart Android POS Terminal, PCI and EMV
Certificated, with FBI Verified Fingerprint Module and
Barcode&QR Code Scanner.
| WCT-T90FO Android POS Configuration: |
| Type | Product Spec |
| Platform | Processor | MTK MT8735 (4-Core ARM Cortex-A53,1.3GHz) |
| RAM | 1GB / 2GB LPDDR3 |
| FLASH | 8GB / 16GB EMMC, TF Card Supported |
| OS | Android 7.0 Security Payment OS |
| Security Processor | MAXIM MAX32555 (Deep-Cover Secure microcontroller) |
| Wireless | Wireless Standard | LTE-FDD/TDD-LTE/TDS-CDMA/WCDMA/CDMA2000/EDGE/GPRS |
| 4G | LTE-FDD: B1/B3/B8 (TBD) |
| TDD-LTE: B38/B39/B40/B41 |
| 3G | UMTS/HSPA/HSPA+/DC-HSPA+: B1/B8 |
| TDS-CDM: B34/B39 |
| EVDO: BC0 |
| 2G | EDGE/GPRS: B3/B8 |
| WLAN | 2.4GHz ISM 2402MHz~2482MHz |
| BT 4.1 LE | 2.4GHz ISM 2402MHz~2480MHz |
| USIM | Card Slots | 4 PSAM slots, 2 SIM slots |
| GPS | GPS | GPS, GLONASS |
| LCD and Touch Panel | LCD Pixels | 720*1280 IPS |
| LCD | 5.5 inch |
| Touch Panel | G+F+F, Capacitive Color Touch, Multi Touch, signature capable,
video capable |
| Keypad | Physical key | Power ON/OFF, Volume up, Volume down. |
| Virtual Keypad | Home Key, Function key, Numeric Keys. |
| Audio | Speaker | 1 W x 1 |
| Microphone | Voice input |
| USB | USB Standard | USB Type C 2.0 |
| Other | Charge Battery, OTG support |
| Camera | REAR | 8Mega Pixels, CMOS, AF, QR/2D barcode, JPEG picture, Video. |
| FRONT | 2Mega Pixels, CMOS, JPEG picture, Video. |
| NFC | Standard | ISO14443 type A/B (ISO 18092 NFC, ISO/IEC 14443&7816, FeliCa
support) |
| Spectrum | 13.56MHz |
| IC card | Contactless Card | NFC 13.56 MHz, Support ISO/IEC 14443 Type A&B, ISO/IEC
14443&7816 |
| EMV card | Smart Card | EMV & PBOC Compliant |
| MSR | Magnetic Card | ISO 7810, 7811, 7813; Triple Track, Bi-Directional; swipe speed
10cm/sec - 100cm/sec. |
| Battery | Battery type | Li-ion polymer battery |
| Capacity | 3.7V, 5800mAh |
| Charger | 5V/2A |
| Certification | ICC | EMV contact L1 / PBCO L1 |
| EMV contact L2 / PBOC L2 |
| NFC | EMV contactless L1 / qPBOC L1 |
| EMV contactless L2 / qPBOC L2 |
| Security | PCI 5.0 |
| UPTS 2.0 |
| Operating environment | Temperature | -5 to +50 °C |
| Relative humidity | 10 % to 85 % RH |
| Storage environment | Temperature | -10 to +60 °C |
| Relative humidity | 10 % to 90 % RH |
| Size and Weigt | Dimension and Weight | 210mm*85mm*53mm, 480g with battery |
| Micro Printer | Printing method | Thermal-line dot method |
| Paper | Thermal roll paper (standard) 57*40 mm |
| Effective Printing area | 48mm |
| Speed | Maximum 70mm/sec(480 dot line/sec) |
| Printing resolutions | 8 dots/mm |
| Character | 12*24dots and 24*48 dots |
| Number of columns | 32columns/line |
| Printing head life | Pulse resistance:100 million pulses/dot (under our standard
conditions); |
Abrasion resistance: paper traveling distance 50km (print ratio:25%
or less) |
Quick Detail:
- More than 9 years manufacturing experiences and products applied
/placed more than 180 countries
- Upgradable functions available
- Flexible Modification to fit customers requirements
- In-door or out-door optional
FAQ
Q: Does your stand secured?
A: Yes, our products are durable metal construction. We have styles
with key lock and with screw locked. Please see our brochure for
more details.
Q: Would it be possible to order a sample of products?
A: Yes, definitely no problem to order one sample at first before
bulk order.
Q: I would like to order custom tablet stand. Do you manufacture
custom design tablet stand?
A: Yes, we have strong R&D center who can custom creative
design for you. Please offer us your requirements.
Q: Is it possible to have our logo printed on top of it?
A: Yes, it is no problem to print logo on top of the tablet
enclosure. Please offer us the logo picture and offer us
international Pan-tone color code for the logo color.
Q: Are you a manufacturer?
A: Yes, we have our own factory with advanced facilities.
Place of Origin:
Guangdong, China
Brand Name:
WCT
Warranty:
1 years
Certificate:
CE/CCC/FCC/ROHS/ISO9001
OS:
Window and Android option
Service:
ODM / OEM
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that
has been providing innovative payment and secure solutions to
financial institutions, government entities and telco operators
worldwide.
Wisecard have been providing EMV smart card, EMV biometric card,
EMV perso software, card issuance, EMV embossers, POS terminals,
smart banking, smart teller machine, kiosk, vending machine,
biometric POS, Hardware Secure Module, mobile payment platform,
private label card solution, prepaid card solution, card management
system to partners in more than 60 countries worldwide. Wisecard’s
product suite empower large global financial institutions and
government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure
standard, and the solutions have been fully tested and certified by
international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS,
VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and
etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China
UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All
trademarks referenced here are the property of the respective
owners.
